complexType "PercentageTolerance"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

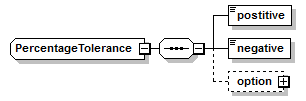

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
All Direct / Indirect Based Elements (1):
percentageTolerance
Known Usage Locations
Annotation
The acceptable tolerance in the delivered quantity of a physical commodity product in terms of a percentage of the agreed delivery quantity.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="PercentageTolerance">
<xsd:sequence>
<xsd:element name="postitive" type="RestrictedPercentage"/>
<xsd:element name="negative" type="RestrictedPercentage"/>
<xsd:element minOccurs="0" name="option" type="PartyReference"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
negative
Type:
RestrictedPercentage, simple content
The maximum percentage amount by which the quantity delivered can be less than the agreed quantity.
Simple Content
xsd:decimal
maxInclusive:
1
minInclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="negative" type="RestrictedPercentage"/>
option
Type:
PartyReference, empty content
Indicates whether the tolerance it at the seller's or buyer's option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="option" type="PartyReference"/>
postitive
Type:
RestrictedPercentage, simple content
The maximum percentage amount by which the quantity delivered can exceed the agreed quantity.
Simple Content
xsd:decimal
maxInclusive:
1
minInclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="postitive" type="RestrictedPercentage"/>
