complexType "SettlementPeriodsSchedule"
Namespace:
Content:
complex, 3 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

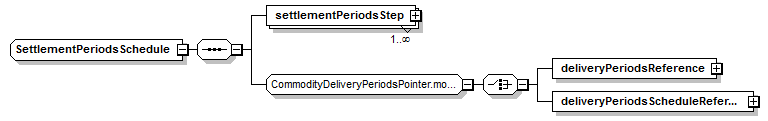

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
deliveryPeriodsReference, deliveryPeriodsScheduleReference, settlementPeriodsStep
All Direct / Indirect Based Elements (1):
settlementPeriodsSchedule
Known Usage Locations
Annotation
The specification of the Settlement Periods in which the electricity will be delivered for a "shaped" trade i.e. where different Settlement Period ranges will apply to different periods of the trade.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="SettlementPeriodsSchedule">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="settlementPeriodsStep" type="SettlementPeriodsStep"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
settlementPeriodsStep
Type:
SettlementPeriodsStep, complex content
The range of Settlement Periods per Calculation Period. There must be a range of Settlement Periods specified for each Calculation Period, regardless of whether the range of Settlement Periods changes or stays the same between periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementPeriodsStep" type="SettlementPeriodsStep"/>
