complexType "WeatherStation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 3 locations

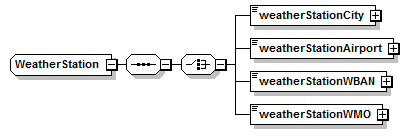

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (4):
weatherStationAirport, weatherStationCity, weatherStationWBAN, weatherStationWMO
All Direct / Indirect Based Elements (3):
weatherStation, weatherStationFallback, weatherStationSecondFallback
Known Usage Locations
Annotation
Weather Station.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="WeatherStation">
<xsd:sequence>
<xsd:choice>
<xsd:element name="weatherStationCity" type="BusinessCenter"/>
<xsd:element name="weatherStationAirport" type="WeatherStationAirport"/>
<xsd:element name="weatherStationWBAN" type="WeatherStationWBAN"/>
<xsd:element name="weatherStationWMO" type="WeatherStationWMO"/>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
weatherStationAirport
Type:
WeatherStationAirport, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="weatherStationAirport" type="WeatherStationAirport"/>
weatherStationCity
Type:
BusinessCenter, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="weatherStationCity" type="BusinessCenter"/>
weatherStationWBAN
Type:
WeatherStationWBAN, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="weatherStationWBAN" type="WeatherStationWBAN"/>
weatherStationWMO
Type:
WeatherStationWMO, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="weatherStationWMO" type="WeatherStationWMO"/>
