complexType "ApprovalStatusNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 11 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

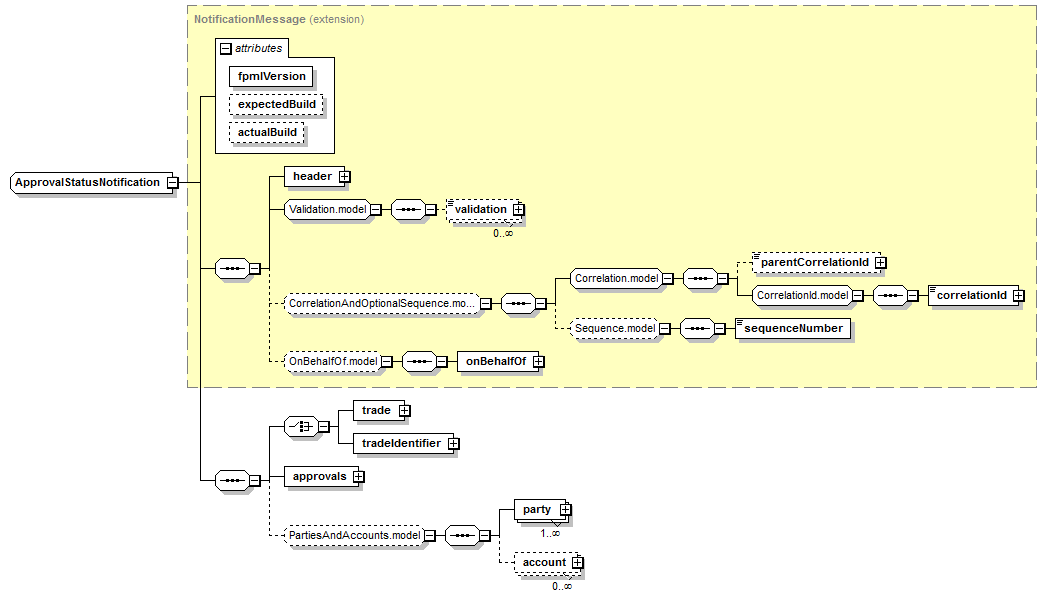

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (11):
header (defined in NotificationMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
approvalStatusNotification
Known Usage Locations
Annotation
A message describing the approvals currently applied to the trade and their status (e.g. pending, approved, refused).
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          ApprovalStatusNotification
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ApprovalStatusNotification">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:choice>
<xsd:element name="trade" type="Trade"/>
<xsd:element name="tradeIdentifier" type="TradeIdentifier"/>
</xsd:choice>
<xsd:element name="approvals" type="Approvals"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/11)
approvals
Type:
Approvals, complex content
All of the approvals for a specific trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="approvals" type="Approvals"/>
trade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element name="trade" type="Trade"/>
tradeIdentifier
Type:
TradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element name="tradeIdentifier" type="TradeIdentifier"/>
