complexType "ClearingStatus"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 9 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

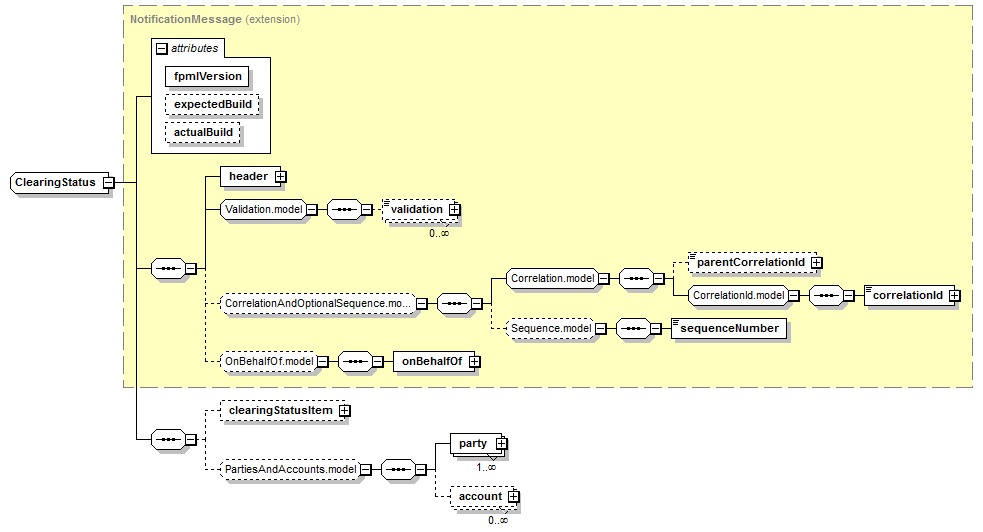

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (9):
header (defined in NotificationMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
clearingStatus
Known Usage Locations
Annotation
A message providing the current status of a clearing request.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          ClearingStatus
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ClearingStatus">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/9)
clearingStatusItem
Type:
ClearingStatusItem, complex content
Describes the status of the clearing process relating to the identified trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
