complexType "DividendPeriodPayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-dividend-swaps-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

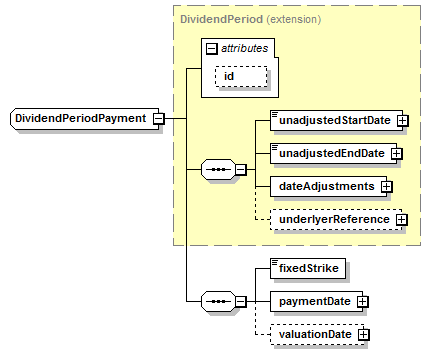

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (7):
dateAdjustments (defined in DividendPeriod complexType),
fixedStrike,
paymentDate (in dividendPeriod in dividendLeg),
unadjustedEndDate (defined in DividendPeriod complexType),
unadjustedStartDate (defined in DividendPeriod complexType),
underlyerReference (defined in DividendPeriod complexType),
valuationDate (in dividendPeriod in dividendLeg)
All Direct / Indirect Based Elements (1):
dividendPeriod (in dividendLeg)
Known Usage Locations
Annotation
A time bounded dividend period, with fixed strike and a dividend payment date per period.
Type Definition Detail
Type Derivation Tree
DividendPeriod (extension)
  DividendPeriodPayment
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="DividendPeriodPayment">
<xsd:complexContent>
<xsd:extension base="DividendPeriod">
<xsd:sequence>
<xsd:element name="fixedStrike" type="PositiveDecimal"/>
<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
<xsd:element minOccurs="0" name="valuationDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/7)
fixedStrike
Type:
PositiveDecimal, simple content
Fixed strike.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedStrike" type="PositiveDecimal"/>
paymentDate
Type:
AdjustableOrRelativeDate, complex content
Dividend period amount payment date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
valuationDate
Type:
AdjustableOrRelativeDate, complex content
Dividend period amount valuation date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="valuationDate" type="AdjustableOrRelativeDate"/>
