element <fixedPayment> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	FixedPaymentAmount
Content:	complex, 1 attribute, 2 elements
Defined:	locally within FixedPaymentLeg complexType in fpml-dividend-swaps-5-8.xsd; see XML source

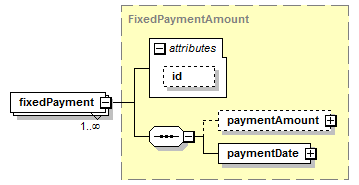

Content Model Diagram

XML Representation Summary

<fixedPayment

xsd:ID

Content:

paymentAmount?, paymentDate

</fixedPayment>

Content model elements (2):

paymentAmount (in fixedPayment),

paymentDate (in fixedPayment)

Included in content model of elements (1):

fixedLeg (defined in DividendSwapTransactionSupplement complexType)

Annotation

Fixed payment of a dividend swap, payment date is relative to a dividend period payment date. Commonly the dividend leg and the fixed payment leg will pay out on the same date, and the payments will be netted.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="fixedPayment" type="FixedPaymentAmount"/>
