complexType "BoundedVariance"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 4 elements
Defined:	globally in fpml-eq-shared-5-8.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 1 location

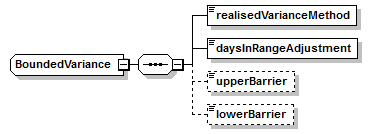

Content Model Diagram

XML Representation Summary

<...>

Content:

realisedVarianceMethod, daysInRangeAdjustment, upperBarrier?, lowerBarrier?

</...>

Content Model Elements (4):

daysInRangeAdjustment, lowerBarrier, realisedVarianceMethod, upperBarrier

All Direct / Indirect Based Elements (1):

boundedVariance

Known Usage Locations

As direct type of elements (1):

boundedVariance

Annotation

A type describing variance bounds, which are used to exclude money price values outside of the specified range In a Up Conditional Swap Underlyer price must be equal to or higher than Lower Barrier In a Down Conditional Swap Underlyer price must be equal to or lower than Upper Barrier In a Corridor Conditional Swap Underlyer price must be equal to or higher than Lower Barrier and must be equal to or lower than Upper Barrier.

XML Source (w/o annotations (5); see within schema source)

<xsd:complexType name="BoundedVariance">

<xsd:sequence>

<xsd:element name="realisedVarianceMethod" type="RealisedVarianceMethodEnum"/>

<xsd:element name="daysInRangeAdjustment" type="xsd:boolean"/>

<xsd:element minOccurs="0" name="upperBarrier" type="NonNegativeDecimal"/>

<xsd:element minOccurs="0" name="lowerBarrier" type="NonNegativeDecimal"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 4/4)

daysInRangeAdjustment

Type:

xsd:boolean, predefined, simple content

The contract specifies whether the notional should be scaled by the Number of Days in Range divided by the Expected N. The number of Days in Ranges refers to the number of returns that contribute to the realized volatility.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="daysInRangeAdjustment" type="xsd:boolean"/>

lowerBarrier

Type:

NonNegativeDecimal, simple content

All observations below this price level will be excluded from the variance calculation.

Simple Content

xsd:decimal

minInclusive:

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="lowerBarrier" type="NonNegativeDecimal"/>

realisedVarianceMethod

Type:

RealisedVarianceMethodEnum, simple content

The contract specifies whether which price must satisfy the boundary condition.

Simple Content

enumeration of xsd:token

Enumeration:

"Previous"	-	For a return on day T, the observed price on T-1 must be in range.
"Last"	-	For a return on day T, the observed price on T must be in range.
"Both"	-	For a return on day T, the observed prices on both T and T-1 must be in range

minLength:

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="realisedVarianceMethod" type="RealisedVarianceMethodEnum"/>

upperBarrier

Type:

NonNegativeDecimal, simple content

All observations above this price level will be excluded from the variance calculation.

Simple Content

xsd:decimal

minInclusive:

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="upperBarrier" type="NonNegativeDecimal"/>
