element <interestCalculation> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	InterestCalculation
Content:	complex, 1 attribute, 6 elements
Defined:	locally within InterestLeg complexType in fpml-eq-shared-5-8.xsd; see XML source

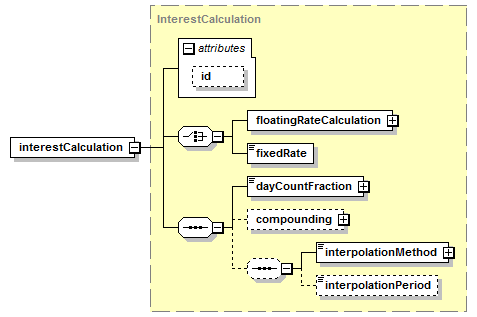

Content Model Diagram

XML Representation Summary

<interestCalculation

xsd:ID

Content:

(floatingRateCalculation | fixedRate), dayCountFraction, compounding?, (interpolationMethod, interpolationPeriod?)?

</interestCalculation>

Content model elements (6):

compounding (in interestCalculation),

dayCountFraction (in interestCalculation),

fixedRate (defined in InterestAccrualsMethod complexType),

floatingRateCalculation (defined in InterestAccrualsMethod complexType),

interpolationMethod (in interestCalculation),

interpolationPeriod

Included in content model of elements (1):

interestLeg

Annotation

Specifies the calculation method of the interest rate leg of the equity swap. Includes the floating or fixed rate calculation definitions, along with the determination of the day count fraction.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="interestCalculation" type="InterestCalculation"/>
