complexType "NettedSwapBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 7 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-eq-shared-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

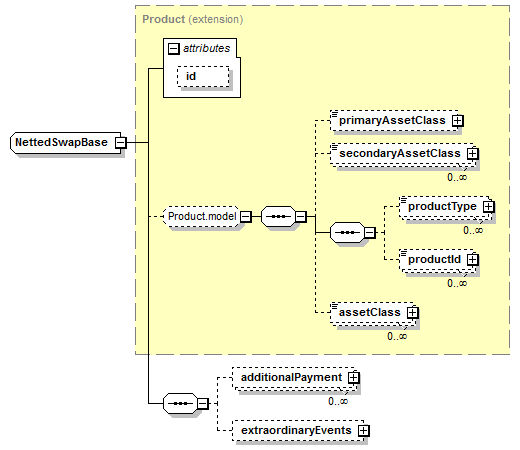

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (7):
additionalPayment (defined in NettedSwapBase complexType),
assetClass,
extraordinaryEvents (defined in NettedSwapBase complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass
Known Direct Subtypes (2):
CorrelationSwap, VarianceSwap
All Direct / Indirect Based Elements (2):
correlationSwap, varianceSwap
Known Usage Locations
Annotation
An abstract base class for all swap types which have a single netted leg, such as Variance Swaps, and Correlation Swaps.
Type Definition Detail
Type Derivation Tree
Product (extension)
  NettedSwapBase
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType abstract="true" name="NettedSwapBase">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="ClassifiedPayment"/>
<xsd:element minOccurs="0" name="extraordinaryEvents" type="ExtraordinaryEvents"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/7)
additionalPayment
Type:
ClassifiedPayment, complex content
Specifies additional payment(s) between the principal parties to the netted swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="ClassifiedPayment"/>
extraordinaryEvents
Type:
ExtraordinaryEvents, complex content
Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="extraordinaryEvents" type="ExtraordinaryEvents"/>
