element <notional> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ReturnSwapNotional
Content:	complex, 1 attribute, 4 elements
Defined:	locally within ReturnLeg complexType in fpml-eq-shared-5-8.xsd; see XML source

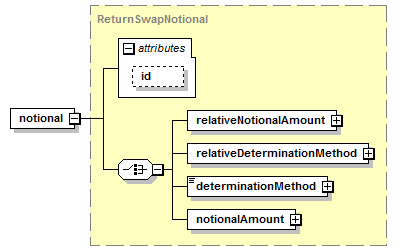

Content Model Diagram

XML Representation Summary

<notional

xsd:ID

Content:

relativeNotionalAmount | relativeDeterminationMethod | determinationMethod | notionalAmount

</notional>

Content model elements (4):

determinationMethod (defined in ReturnSwapNotional complexType),

notionalAmount (defined in ReturnSwapNotional complexType),

relativeDeterminationMethod,

relativeNotionalAmount

Included in content model of elements (1):

returnLeg

Annotation

Specifies the notional of a return type swap. When used in the equity leg, the definition will typically combine the actual amount (using the notional component defined by the FpML industry group) and the determination method. When used in the interest leg, the definition will typically point to the definition of the equity leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="notional" type="ReturnSwapNotional"/>
