complexType "ReturnSwapNotional"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-eq-shared-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 2 locations

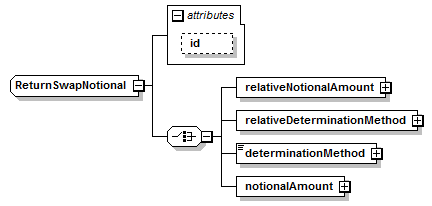

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
determinationMethod (defined in ReturnSwapNotional complexType),
notionalAmount (defined in ReturnSwapNotional complexType),
relativeDeterminationMethod,
relativeNotionalAmount
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
Specifies the notional of return type swap. When used in the equity leg, the definition will typically combine the actual amount (using the notional component defined by the FpML industry group) and the determination method. When used in the interest leg, the definition will typically point to the definition of the equity leg.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="ReturnSwapNotional">
<xsd:choice>
<xsd:element name="relativeNotionalAmount" type="ReturnSwapNotionalAmountReference"/>
<xsd:element name="determinationMethod" type="DeterminationMethod"/>
<xsd:element name="notionalAmount" type="NotionalAmount"/>
</xsd:choice>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/4)
determinationMethod
Type:
DeterminationMethod, simple content
Specifies the method according to which an amount or a date is determined.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="determinationMethod" type="DeterminationMethod"/>
notionalAmount
Type:
NotionalAmount, complex content
The notional amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="notionalAmount" type="NotionalAmount"/>
relativeDeterminationMethod
Type:
DeterminationMethodReference, empty content
A reference to the return swap notional determination method defined elsewhere in this document.
XML Source (w/o annotations (1); see within schema source)
relativeNotionalAmount
Type:
ReturnSwapNotionalAmountReference, empty content
A reference to the return swap notional amount defined elsewhere in this document.
XML Source (w/o annotations (1); see within schema source)
