complexType "EquityMultipleExercise"
Namespace:
Content:
complex, 3 elements
Defined:
globally in fpml-eqd-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:

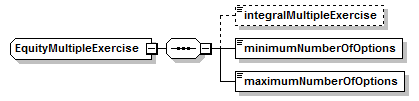

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
integralMultipleExercise,
maximumNumberOfOptions (defined in EquityMultipleExercise complexType),
minimumNumberOfOptions (defined in EquityMultipleExercise complexType)
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
A type for defining the multiple exercise provisions of an American or Bermuda style equity option.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="EquityMultipleExercise">
<xsd:sequence>
<xsd:element minOccurs="0" name="integralMultipleExercise" type="PositiveDecimal"/>
<xsd:element name="minimumNumberOfOptions" type="NonNegativeDecimal"/>
<xsd:element name="maximumNumberOfOptions" type="NonNegativeDecimal"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
integralMultipleExercise
Type:
PositiveDecimal, simple content
When multiple exercise is applicable and this element is present it specifies that the number of options that can be exercised on a given exercise date must either be equal to the value of this element or be an integral multiple of it.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="integralMultipleExercise" type="PositiveDecimal"/>

maximumNumberOfOptions
Type:
NonNegativeDecimal, simple content
When multiple exercise is applicable this element specifies the maximum number of options that can be exercised on a given exercise date. If this element is not present then the maximum number is deemed to be the same as the number of options. Its value can be a fractional number as a result of corporate actions.
Simple Content
xsd:decimal
minInclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="maximumNumberOfOptions" type="NonNegativeDecimal"/>

minimumNumberOfOptions
Type:
NonNegativeDecimal, simple content
When multiple exercise is applicable this element specifies the minimum number of options that can be exercised on a given exercise date. If this element is not present then the minimum number is deemed to be 1. Its value can be a fractional number as a result of corporate actions.
Simple Content
xsd:decimal
minInclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="minimumNumberOfOptions" type="NonNegativeDecimal"/>
