complexType "FxAsianFeature"
Namespace:
Content:
complex, 8 elements
Defined:
globally in fpml-fx-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:

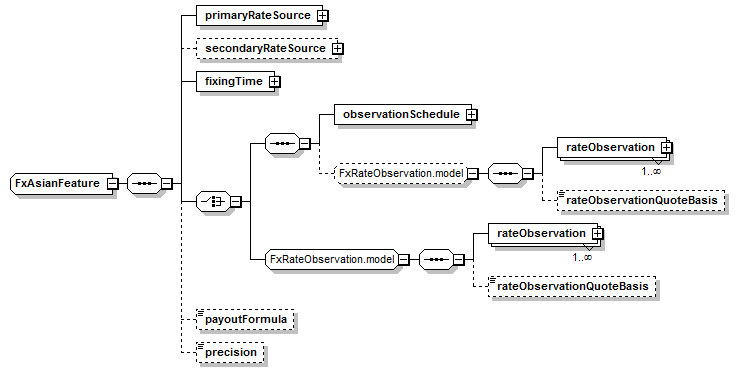

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (8):
All Direct / Indirect Based Elements (1):
asian (in features in fxOption)
Known Usage Locations
Annotation
Descibes the averaging period properties for an asian option.
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="FxAsianFeature">
<xsd:sequence>
<xsd:element name="primaryRateSource" type="InformationSource"/>
<xsd:element minOccurs="0" name="secondaryRateSource" type="InformationSource"/>
<xsd:element name="fixingTime" type="BusinessCenterTime"/>
<xsd:choice>
<xsd:sequence>
<xsd:element name="observationSchedule" type="FxAverageRateObservationSchedule"/>
<xsd:group minOccurs="0" ref="FxRateObservation.model"/>
</xsd:sequence>
<xsd:group ref="FxRateObservation.model"/>
</xsd:choice>
<xsd:element minOccurs="0" name="payoutFormula" type="String"/>
<xsd:element minOccurs="0" name="precision" type="xsd:nonNegativeInteger"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/8)
fixingTime
Type:
BusinessCenterTime, complex content
The time at which the spot currency exchange rate will be observed. It is specified as a time in a business day calendar location, e.g. 11:00am London time.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixingTime" type="BusinessCenterTime"/>

observationSchedule
Type:
Parametric schedule of rate observations.
XML Source (w/o annotations (1); see within schema source)

payoutFormula
Type:
String, simple content
The description of the mathematical computation for how the payout is computed.
Simple Content
xsd:string
maxLength:
255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payoutFormula" type="String"/>

precision
Type:
xsd:nonNegativeInteger, predefined, simple content
Specifies the rounding precision in terms of a number of decimal places. Note how a percentage rate rounding of 5 decimal places is expressed as a rounding precision of 7 in the FpML document since the percentage is expressed as a decimal, e.g. 9.876543% (or 0.09876543) being rounded to the nearest 5 decimal places is 9.87654% (or 0.0987654).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="precision" type="xsd:nonNegativeInteger"/>

primaryRateSource
Type:
InformationSource, complex content
The primary source for where the rate observation will occur. Will typically be either a page or a reference bank published rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="primaryRateSource" type="InformationSource"/>

secondaryRateSource
Type:
InformationSource, complex content
An alternative, or secondary, source for where the rate observation will occur. Will typically be either a page or a reference bank published rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="secondaryRateSource" type="InformationSource"/>
