element <settlementDateOffset> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RelativeDateOffset
Content:
complex, 1 attribute, 8 elements
Defined:
locally within FxFlexibleForward complexType in fpml-fx-5-8.xsd; see XML source

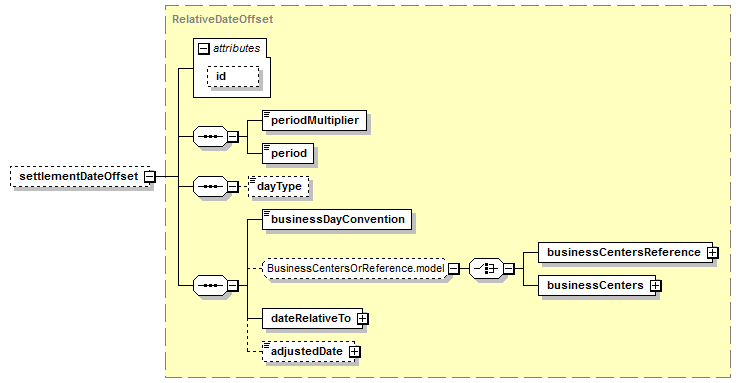

Content Model Diagram
XML Representation Summary
<settlementDateOffset

 =
xsd:ID

>

Content:
</settlementDateOffset>
Content model elements (8):
adjustedDate (defined in RelativeDateOffset complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
businessDayConvention (defined in RelativeDateOffset complexType),
dateRelativeTo (defined in RelativeDateOffset complexType),
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
Included in content model of elements (1):
fxFlexibleForward
Annotation
The date on which delivery of the transacted currency amounts will occur, expressed as an offset from the execution date. * This property is optional in the schema, allowing it to be omitted by systems which do not support it; however this information would be expected in contractual documentation (e.g. termsheet, confirmation).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementDateOffset" type="RelativeDateOffset"/>
