complexType "FxPerformanceFixedLeg"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-fx-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

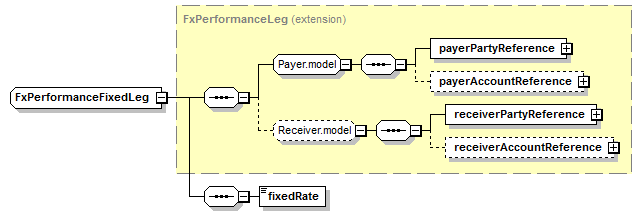

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
fixedRate (in fixedLeg defined in FxPerformanceSwap complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group)
All Direct / Indirect Based Elements (1):
fixedLeg (defined in FxPerformanceSwap complexType)
Known Usage Locations
Annotation
FX Performance Fixed Leg describes Fixed FX Rate Payer and Fixed Rate.
Type Definition Detail
Type Derivation Tree
FxPerformanceLeg (extension)
  FxPerformanceFixedLeg
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxPerformanceFixedLeg">
<xsd:complexContent>
<xsd:extension base="FxPerformanceLeg">
<xsd:sequence>
<xsd:element name="fixedRate" type="PositiveDecimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/5)
fixedRate
Type:
PositiveDecimal, simple content
Fixed Rate means a rate, expressed as a decimal, equal to the per annum rate specified as such in the Confirmation for the Non-Deliverable Swap FX Transaction or that party (i.e., a per annum rate of 15.10% as specified in a Confirmation shall be expressed as 0.1510 for calculation purposes).
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedRate" type="PositiveDecimal"/>
