element <settlementDate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AdjustableOrAdjustedDate
Content:
complex, 1 attribute, 4 elements
Defined:
locally within FxPerformanceSwap complexType in fpml-fx-5-8.xsd; see XML source

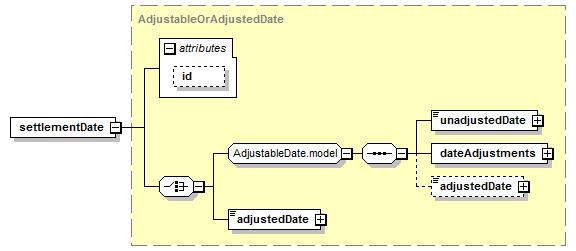

Content Model Diagram
XML Representation Summary
<settlementDate

 =
xsd:ID

>

Content:
</settlementDate>
Content model elements (4):
adjustedDate (defined in AdjustableDate.model group),
adjustedDate (defined in AdjustableOrAdjustedDate complexType),
dateAdjustments (defined in AdjustableDate.model group),
unadjustedDate (defined in AdjustableDate.model group)
Included in content model of elements (2):
fxVarianceSwap, fxVolatilitySwap
XML Source (see within schema source)
<xsd:element name="settlementDate" type="AdjustableOrAdjustedDate"/>
