complexType "AdjustableOrAdjustedDate"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 1 element
Used:
at 3 locations

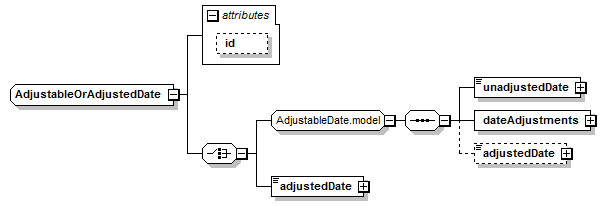

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
adjustedDate (defined in AdjustableDate.model group),
adjustedDate (defined in AdjustableOrAdjustedDate complexType),
dateAdjustments (defined in AdjustableDate.model group),
unadjustedDate (defined in AdjustableDate.model group)
All Direct / Indirect Based Elements (3):
paymentDate (defined in Payment complexType),
settlementDate (defined in FxPerformanceSwap complexType),
Known Usage Locations
Annotation
A type for defining a date that shall be subject to adjustment if it would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AdjustableOrAdjustedDate">
<xsd:choice>
<xsd:group ref="AdjustableDate.model"/>
<xsd:element name="adjustedDate" type="IdentifiedDate"/>
</xsd:choice>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 1/4)
adjustedDate
Type:
IdentifiedDate, simple content
The date once the adjustment has been performed. (Note that this date may change if the business center holidays change).
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="adjustedDate" type="IdentifiedDate"/>
