complexType "FxAverageRate"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-fx-accruals-5-8.xsd; see XML source
Includes:
definition of 1 attribute
Used:
at 2 locations

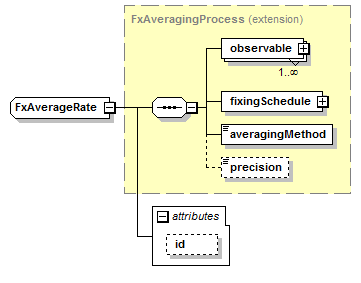

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
averagingMethod (defined in FxAveragingProcess complexType),
fixingSchedule (defined in FxAveragingProcess complexType),
observable (defined in FxAveragingProcess complexType),
precision (defined in FxAveragingProcess complexType)
All Direct / Indirect Based Elements (2):
Known Usage Locations
Type Definition Detail
Type Derivation Tree
FxAveragingProcess (extension)
  FxAverageRate
XML Source (see within schema source)
<xsd:complexType name="FxAverageRate">
<xsd:complexContent>
<xsd:extension base="FxAveragingProcess">
<xsd:attribute name="id" type="xsd:ID" use="optional"/>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID" use="optional"/>
