complexType "FxPhysicalSettlement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-fx-complex-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

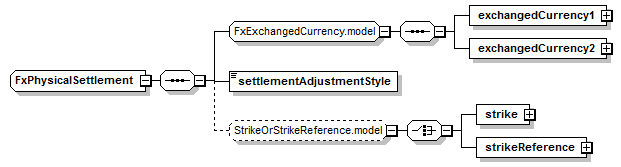

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
exchangedCurrency1 (defined in FxExchangedCurrency.model group),
exchangedCurrency2 (defined in FxExchangedCurrency.model group),
settlementAdjustmentStyle (defined in FxPhysicalSettlement complexType),
strike (defined in StrikeOrStrikeReference.model group),
strikeReference (defined in StrikeOrStrikeReference.model group)
All Direct / Indirect Based Elements (2):
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FxPhysicalSettlement">
<xsd:sequence>
<xsd:group ref="FxExchangedCurrency.model"/>
<xsd:group minOccurs="0" ref="StrikeOrStrikeReference.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/5)
settlementAdjustmentStyle
Type:
FxTargetSettlementAdjustmentMethodEnum, simple content
The Settlement Adjustment Style can be VariedStrike or VariedNotional.
Simple Content
enumeration of xsd:token
Enumeration:
"VariedStrike", "VariedNotional"
minLength:
0
XML Source (w/o annotations (1); see within schema source)
