element <payoffLeverage> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxLeverage
Content:
complex, 1 attribute, 9 elements
Defined:
locally within FxVanillaPayoffRegion complexType in fpml-fx-complex-5-8.xsd; see XML source

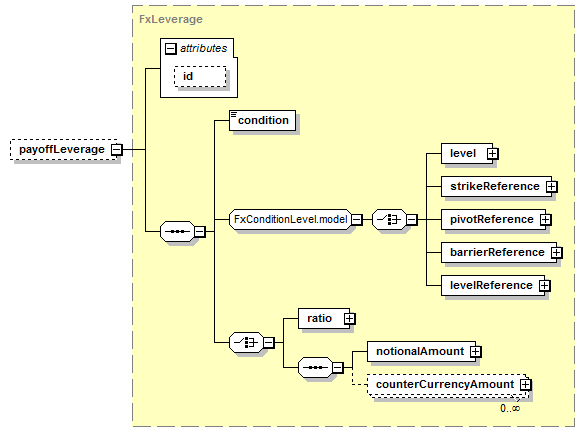

Content Model Diagram
XML Representation Summary
<payoffLeverage

 =
xsd:ID

>

Content:
</payoffLeverage>
Content model elements (9):
barrierReference,
condition (in payoffLeverage defined in FxVanillaPayoffRegion complexType),
counterCurrencyAmount (in payoffLeverage defined in FxVanillaPayoffRegion complexType),
level (defined in FxConditionLevel.model group),
levelReference,
notionalAmount (in payoffLeverage defined in FxVanillaPayoffRegion complexType),
pivotReference,
ratio (in payoffLeverage defined in FxVanillaPayoffRegion complexType),
strikeReference (defined in FxConditionLevel.model group)
Included in content model of elements (2):
Annotation
Notional leverage.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payoffLeverage" type="FxLeverage"/>
