element <notional> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CashflowNotional
Content:
complex, 1 attribute, 3 elements
Defined:
locally within GenericProduct complexType in fpml-generic-5-8.xsd; see XML source

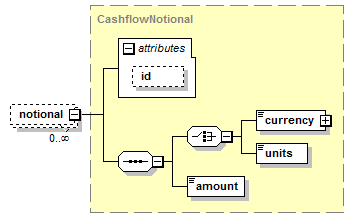

Content Model Diagram
XML Representation Summary
<notional

 =
xsd:ID

>

Content:
</notional>
Content model elements (3):
amount (defined in CashflowNotional complexType),
currency (defined in CashflowNotional complexType),
units (defined in CashflowNotional complexType)
Included in content model of elements (2):
genericProduct, nonSchemaProduct
Annotation
The notional or notionals in effect on the reporting date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="notional" type="CashflowNotional"/>
