complexType "GenericProduct"
Namespace:
Content:
complex, 1 attribute, 35 elements
Defined:
Includes:
definitions of 12 elements
Used:

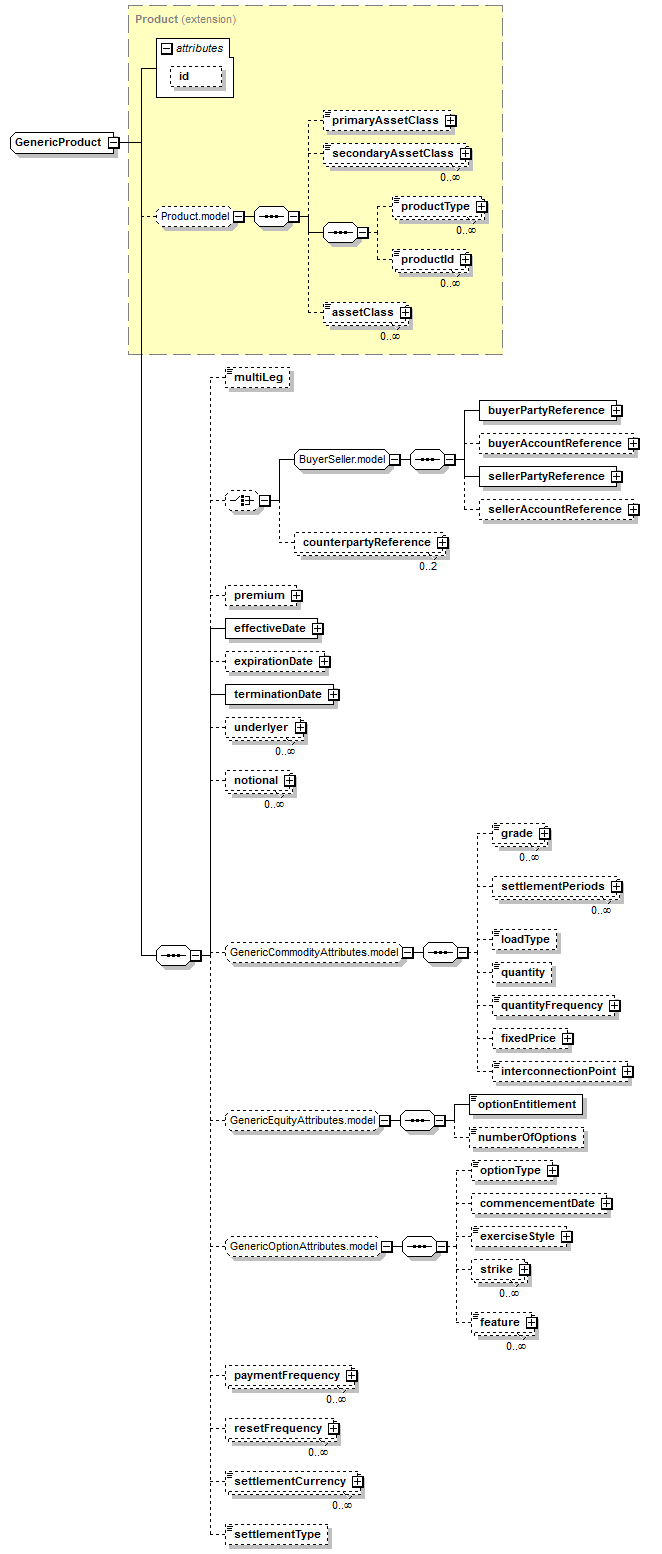

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (35):
assetClass,
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
commencementDate (defined in GenericOptionAttributes.model group),
counterpartyReference,
effectiveDate (defined in GenericProduct complexType),
exerciseStyle,
expirationDate (defined in GenericProduct complexType),
feature (defined in GenericOptionAttributes.model group),
fixedPrice (defined in GenericCommodityAttributes.model group),
grade (defined in GenericCommodityAttributes.model group),
interconnectionPoint (defined in GenericCommodityAttributes.model group),
loadType (defined in GenericCommodityAttributes.model group),
multiLeg,
notional (defined in GenericProduct complexType),
numberOfOptions (defined in GenericEquityAttributes.model group),
optionEntitlement (defined in GenericEquityAttributes.model group),
optionType (defined in GenericOptionAttributes.model group),
paymentFrequency (defined in GenericProduct complexType),
premium (defined in GenericProduct complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
quantity (defined in GenericCommodityAttributes.model group),
quantityFrequency (defined in GenericCommodityAttributes.model group),
resetFrequency (defined in GenericProduct complexType),
secondaryAssetClass,
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
settlementCurrency (defined in GenericProduct complexType),
settlementPeriods (defined in GenericCommodityAttributes.model group),
settlementType (defined in GenericProduct complexType),
strike (defined in GenericOptionAttributes.model group),
terminationDate (defined in GenericProduct complexType),
underlyer (defined in GenericProduct complexType)
All Direct / Indirect Based Elements (2):
genericProduct, nonSchemaProduct
Known Usage Locations
Annotation
Simple product representation providing key information about a variety of different products. Generic products - for use in Transparency reporting to define a product that represents an OTC derivative transaction whose economics are not fully described using an FpML schema. In other views, generic products are present for convenience to support internal messaging and workflows that are cross-product. Generic products are not full trade representations as such they are not intended to be used for confirming trades.
Type Definition Detail
Type Derivation Tree
Product (extension)
  GenericProduct
XML Source (w/o annotations (10); see within schema source)
<xsd:complexType name="GenericProduct">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element minOccurs="0" name="multiLeg" type="xsd:boolean"/>
<xsd:choice minOccurs="0">
<xsd:group ref="BuyerSeller.model"/>
<xsd:element maxOccurs="2" minOccurs="0" name="counterpartyReference" type="PartyReference"/>
</xsd:choice>
<xsd:element minOccurs="0" name="premium" type="SimplePayment"/>
<xsd:element name="effectiveDate" type="AdjustableDate2"/>
<xsd:element minOccurs="0" name="expirationDate" type="AdjustableDate2"/>
<xsd:element name="terminationDate" type="AdjustableDate2"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="underlyer" type="TradeUnderlyer2"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="notional" type="CashflowNotional"/>
<xsd:group minOccurs="0" ref="GenericCommodityAttributes.model"/>
<xsd:group minOccurs="0" ref="GenericEquityAttributes.model"/>
<xsd:group minOccurs="0" ref="GenericOptionAttributes.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentFrequency" type="GenericFrequency"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="resetFrequency" type="GenericResetFrequency"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementCurrency" type="IdentifiedCurrency"/>
<xsd:element minOccurs="0" name="settlementType" type="SettlementTypeEnum"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 12/35)
counterpartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element maxOccurs="2" minOccurs="0" name="counterpartyReference" type="PartyReference"/>

effectiveDate
Type:
AdjustableDate2, complex content
The earliest of all the effective dates of all constituent streams.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="effectiveDate" type="AdjustableDate2"/>

expirationDate
Type:
AdjustableDate2, complex content
For options, the last exercise date of the option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="expirationDate" type="AdjustableDate2"/>

multiLeg
Type:
xsd:boolean, predefined, simple content
Indicates whether this transaction has multiple components, not all of which may be reported. The use of this field is not recommended, and it may be deprecated in a future version of this standard.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="multiLeg" type="xsd:boolean"/>

notional
Type:
CashflowNotional, complex content
The notional or notionals in effect on the reporting date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="notional" type="CashflowNotional"/>

paymentFrequency
Type:
GenericFrequency, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentFrequency" type="GenericFrequency"/>

premium
Type:
SimplePayment, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="premium" type="SimplePayment"/>

resetFrequency
Type:
GenericResetFrequency, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="resetFrequency" type="GenericResetFrequency"/>

settlementCurrency
Type:
IdentifiedCurrency, simple content
The currency or currencies in which the product can settle.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementCurrency" type="IdentifiedCurrency"/>

settlementType
Type:
SettlementTypeEnum, simple content
How the trade settles (cash or physical). This element is also used for CFTC the "Delivery Type" field.
Simple Content
enumeration of xsd:token
Enumeration:
"Cash"
 -
The intrinsic value of the option will be delivered by way of a cash settlement amount determined, (i) by reference to the differential between the strike price and the settlement price; or (ii) in accordance with a bilateral agreement between the parties
"Physical"
 -
The securities underlying the transaction will be delivered by (i) in the case of a call, the seller to the buyer, or (ii) in the case of a put, the buyer to the seller versus a settlement amount equivalent to the strike price per share
"Election"
 -
Allow Election of either Cash or Physical settlement
"CashOrPhysical"
 -
Allow use of either Cash or Physical settlement without prior Election
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementType" type="SettlementTypeEnum"/>

terminationDate
Type:
AdjustableDate2, complex content
The latest of all of the termination (accrual end) dates of the constituent or underlying streams.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="terminationDate" type="AdjustableDate2"/>

underlyer
Type:
TradeUnderlyer2, complex content
The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="underlyer" type="TradeUnderlyer2"/>
