element <futureValueNotional> (local)
Namespace:
Type:
Content:
complex, 1 attribute, 4 elements
Defined:
locally within Calculation complexType in fpml-ird-5-8.xsd; see XML source

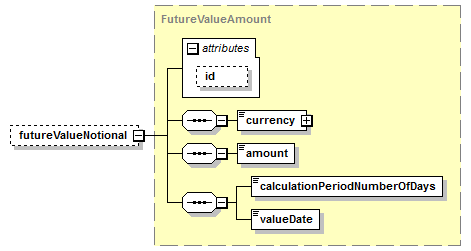

Content Model Diagram
XML Representation Summary
<futureValueNotional

 =
xsd:ID

>

Content:
</futureValueNotional>
Content model elements (4):
amount (defined in NonNegativeMoney complexType),
currency (defined in MoneyBase complexType),
Included in content model of elements (1):
calculation (in calculationPeriodAmount)
Annotation
The future value notional is normally only required for BRL CDI Swaps. The value is calculated as follows: Future Value Notional = Notional Amount * (1 + Fixed Rate) ^ (Fixed Rate Day Count Fraction). The currency should always match that expressed in the notional schedule. The value date should match the adjusted termination date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="futureValueNotional" type="FutureValueAmount"/>
