element <capFloorStream> (local)
Namespace:
Type:
Content:
complex, 1 attribute, 13 elements
Defined:
locally within CapFloor complexType in fpml-ird-5-8.xsd; see XML source

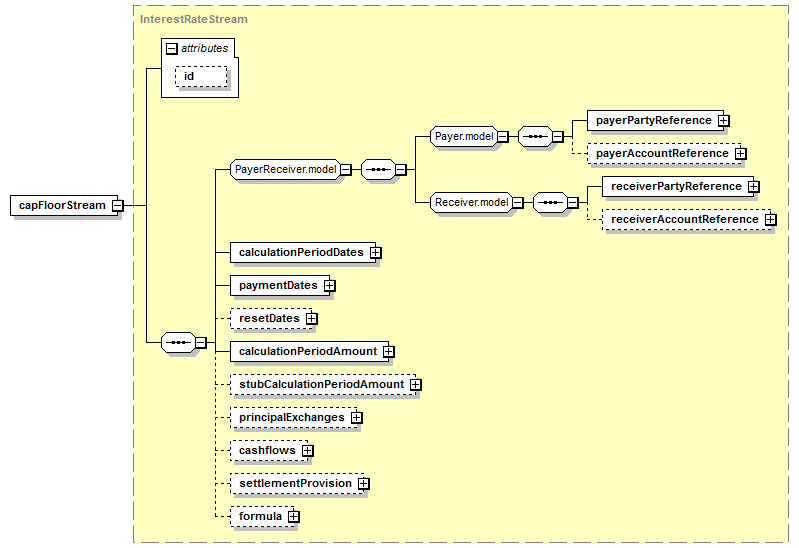

Content Model Diagram
XML Representation Summary
<capFloorStream

 =
xsd:ID

>

Content:
</capFloorStream>
Content model elements (13):
calculationPeriodAmount,
calculationPeriodDates,
cashflows,
formula (defined in InterestRateStream complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDates (defined in InterestRateStream complexType),
principalExchanges (defined in InterestRateStream complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
resetDates,
settlementProvision,
stubCalculationPeriodAmount
Included in content model of elements (1):
capFloor
Annotation
Reference to the leg, where date adjustments may apply.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="capFloorStream" type="InterestRateStream"/>
