complexType "CashSettlement"
Namespace:
Content:
complex, 1 attribute, 10 elements
Defined:
globally in fpml-ird-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 10 elements
Used:

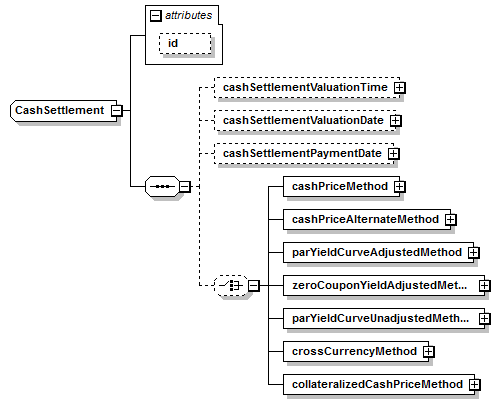

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (10):
cashPriceAlternateMethod, cashPriceMethod, cashSettlementPaymentDate, cashSettlementValuationDate, cashSettlementValuationTime, collateralizedCashPriceMethod, crossCurrencyMethod, parYieldCurveAdjustedMethod, parYieldCurveUnadjustedMethod, zeroCouponYieldAdjustedMethod
All Direct / Indirect Based Elements (3):
cashSettlement (defined in MandatoryEarlyTermination complexType),
cashSettlement (defined in OptionalEarlyTermination complexType),
cashSettlement (in swaption)
Known Usage Locations
Annotation
A type to define the cash settlement terms for a product where cash settlement is applicable.
XML Source (w/o annotations (11); see within schema source)
<xsd:complexType name="CashSettlement">
<xsd:sequence>
<xsd:element minOccurs="0" name="cashSettlementValuationTime" type="BusinessCenterTime"/>
<xsd:element minOccurs="0" name="cashSettlementValuationDate" type="RelativeDateOffset"/>
<xsd:element minOccurs="0" name="cashSettlementPaymentDate" type="CashSettlementPaymentDate"/>
<xsd:choice minOccurs="0">
<xsd:element name="cashPriceMethod" type="CashPriceMethod"/>
<xsd:element name="cashPriceAlternateMethod" type="CashPriceMethod"/>
<xsd:element name="parYieldCurveAdjustedMethod" type="YieldCurveMethod"/>
<xsd:element name="zeroCouponYieldAdjustedMethod" type="YieldCurveMethod"/>
<xsd:element name="parYieldCurveUnadjustedMethod" type="YieldCurveMethod"/>
<xsd:element name="crossCurrencyMethod" type="CrossCurrencyMethod"/>
<xsd:element name="collateralizedCashPriceMethod" type="YieldCurveMethod"/>
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 10/10)
cashPriceAlternateMethod
Type:
CashPriceMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (b).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="cashPriceAlternateMethod" type="CashPriceMethod"/>

cashPriceMethod
Type:
CashPriceMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (a).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="cashPriceMethod" type="CashPriceMethod"/>

cashSettlementPaymentDate
Type:
CashSettlementPaymentDate, complex content
The date on which the cash settlement amount will be paid, subject to adjustment in accordance with any applicable business day convention. This component would not be present for a mandatory early termination provision where the cash settlement payment date is the mandatory early termination date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="cashSettlementPaymentDate" type="CashSettlementPaymentDate"/>

cashSettlementValuationDate
Type:
RelativeDateOffset, complex content
The date on which the cash settlement amount will be determined according to the cash settlement method if the parties have not otherwise been able to agree the cash settlement amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="cashSettlementValuationDate" type="RelativeDateOffset"/>

cashSettlementValuationTime
Type:
BusinessCenterTime, complex content
The time of the cash settlement valuation date when the cash settlement amount will be determined according to the cash settlement method if the parties have not otherwise been able to agree the cash settlement amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="cashSettlementValuationTime" type="BusinessCenterTime"/>

collateralizedCashPriceMethod
Type:
YieldCurveMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (g) (published in Supplement number 28).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="collateralizedCashPriceMethod" type="YieldCurveMethod"/>

crossCurrencyMethod
Type:
CrossCurrencyMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (f) (published in Supplement number 23).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="crossCurrencyMethod" type="CrossCurrencyMethod"/>

parYieldCurveAdjustedMethod
Type:
YieldCurveMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (c).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="parYieldCurveAdjustedMethod" type="YieldCurveMethod"/>

parYieldCurveUnadjustedMethod
Type:
YieldCurveMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (e).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="parYieldCurveUnadjustedMethod" type="YieldCurveMethod"/>

zeroCouponYieldAdjustedMethod
Type:
YieldCurveMethod, complex content
An ISDA defined cash settlement method used for the determination of the applicable cash settlement amount. The method is defined in the 2006 ISDA Definitions, Section 18.3. Cash Settlement Methods, paragraph (d).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="zeroCouponYieldAdjustedMethod" type="YieldCurveMethod"/>
