complexType "ExercisePeriod"
Namespace:
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-ird-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:

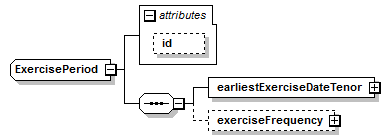

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (2):
All Direct / Indirect Based Elements (1):
optionalEarlyTerminationParameters
Known Usage Locations
Annotation
This defines the time interval to the start of the exercise period, i.e. the earliest exercise date, and the frequency of subsequent exercise dates (if any).
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="ExercisePeriod">
<xsd:sequence>
<xsd:element name="earliestExerciseDateTenor" type="Period"/>
<xsd:element minOccurs="0" name="exerciseFrequency" type="Period"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
earliestExerciseDateTenor
Type:
Period, complex content
The time interval to the first (and possibly only) exercise date in the exercise period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="earliestExerciseDateTenor" type="Period"/>

exerciseFrequency
Type:
Period, complex content
The frequency of subsequent exercise dates in the exercise period following the earliest exercise date. An interval of 1 day should be used to indicate an American style exercise period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exerciseFrequency" type="Period"/>
