complexType "FallbackReferencePrice"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-ird-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

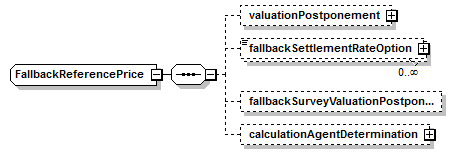

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (4):
calculationAgentDetermination (in fallbackReferencePrice in priceSourceDisruption in nonDeliverableSettlement in settlementProvision),
fallbackSettlementRateOption,
fallbackSurveyValuationPostponenment,
valuationPostponement (in fallbackReferencePrice in priceSourceDisruption in nonDeliverableSettlement in settlementProvision)
All Direct / Indirect Based Elements (1):
fallbackReferencePrice (in priceSourceDisruption in nonDeliverableSettlement in settlementProvision)
Known Usage Locations
Annotation
The method, prioritzed by the order it is listed in this element, to get a replacement rate for the disrupted settlement rate option.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="FallbackReferencePrice">
<xsd:sequence>
<xsd:element minOccurs="0" name="valuationPostponement" type="ValuationPostponement"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="fallbackSettlementRateOption" type="SettlementRateOption"/>
<xsd:element minOccurs="0" name="fallbackSurveyValuationPostponenment" type="Empty"/>
<xsd:element minOccurs="0" name="calculationAgentDetermination" type="CalculationAgent"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
calculationAgentDetermination
Type:
CalculationAgent, complex content
The calculation agent will decide the rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationAgentDetermination" type="CalculationAgent"/>
fallbackSettlementRateOption
Type:
SettlementRateOption, simple content
This settlement rate option will be used in its place.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="fallbackSettlementRateOption" type="SettlementRateOption"/>
fallbackSurveyValuationPostponenment
Type:
Empty, empty content
Request rate quotes from the market.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fallbackSurveyValuationPostponenment" type="Empty"/>
valuationPostponement
Type:
ValuationPostponement, complex content
Specifies how long to wait to get a quote from a settlement rate option upon a price source disruption
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="valuationPostponement" type="ValuationPostponement"/>
