complexType "BusinessEventGroupIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

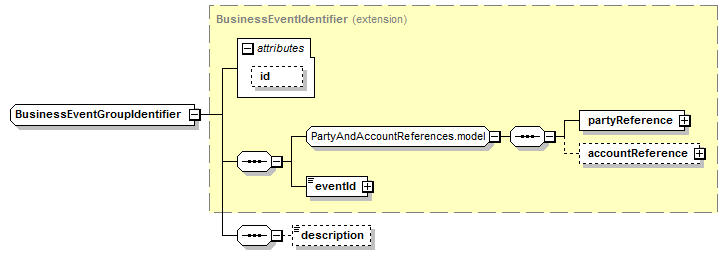

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
accountReference (defined in PartyAndAccountReferences.model group),
description (in businessEventGroupId),
eventId (defined in BusinessEventIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group)
All Direct / Indirect Based Elements (1):
businessEventGroupId
Known Usage Locations
Annotation
A type defining an event identifier issued by the indicated party.
Type Definition Detail
Type Derivation Tree
BusinessEventIdentifier (extension)
  BusinessEventGroupIdentifier
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BusinessEventGroupIdentifier">
<xsd:complexContent>
<xsd:extension base="BusinessEventIdentifier">
<xsd:sequence>
<xsd:element minOccurs="0" name="description" type="xsd:normalizedString"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
description
Type:
xsd:normalizedString, predefined, simple content
A short description of the combination of business events that make up the event group.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="description" type="xsd:normalizedString"/>
