complexType "CommitmentChange"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 1 location

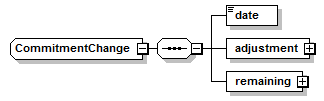

Content Model Diagram

XML Representation Summary

<...>

Content:

</...>

Content Model Elements (3):

All Direct / Indirect Based Elements (1):

Known Usage Locations

Annotation

A structure which specifies the amortizations occurring throughout the life of a facility.

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="CommitmentChange">

<xsd:sequence>

<xsd:element name="date" type="xsd:date"/>

<xsd:element name="adjustment" type="Adjustment"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 3/3)

Type:

Adjustment, complex content

The total remaining commitment amount (in facility currency), once the adjustnment has been applied.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="adjustment" type="Adjustment"/>

Type:

xsd:date, predefined, simple content

The date on which a facility increase/decrease has/will occur.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="date" type="xsd:date"/>

Type:

The total remaining commitment amount (in facility currency), once the adjustnment has been applied.

XML Source (w/o annotations (1); see within schema source)
