element <fixedRateOption> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	FixedRateOption
Content:	complex, 13 elements
Defined:	locally within FixedRateOptionChange complexType in fpml-loan-5-8.xsd; see XML source

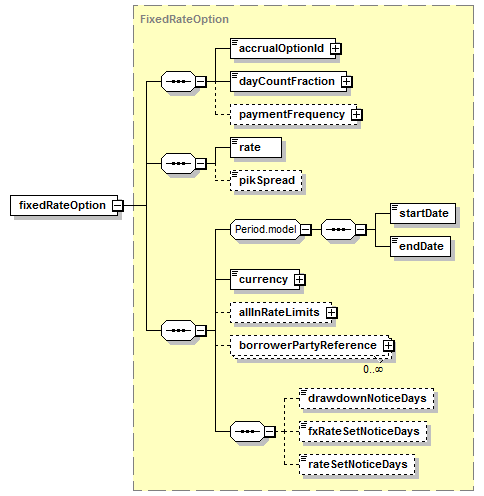

Content Model Diagram

XML Representation Summary

<fixedRateOption>

Content:

accrualOptionId, dayCountFraction, paymentFrequency?, rate, pikSpread?, startDate, endDate, currency, allInRateLimits?, borrowerPartyReference*, drawdownNoticeDays?, fxRateSetNoticeDays?, rateSetNoticeDays?

</fixedRateOption>

Content model elements (13):

accrualOptionId,

allInRateLimits (defined in FixedRateOption complexType),

borrowerPartyReference (defined in FixedRateOption complexType),

currency (defined in FixedRateOption complexType),

dayCountFraction (defined in AccrualOptionBase complexType),

drawdownNoticeDays (defined in FixedRateOption complexType),

endDate (defined in Period.model group),

fxRateSetNoticeDays (defined in FixedRateOption complexType),

paymentFrequency (defined in AccrualOptionBase complexType),

pikSpread (defined in FixedRateOptionBase complexType),

rate (defined in FixedRateOptionBase complexType),

rateSetNoticeDays (defined in FixedRateOption complexType),

startDate (defined in Period.model group)

Included in content model of elements (1):

fixedRateOptionChange

XML Source (see within schema source)

<xsd:element name="fixedRateOption" type="FixedRateOption"/>
