complexType "FixedRateOptionBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 3 locations

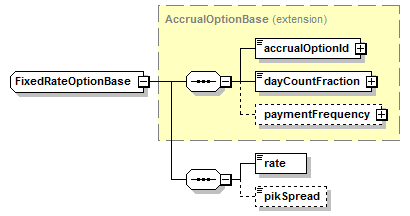

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
dayCountFraction (defined in AccrualOptionBase complexType),
paymentFrequency (defined in AccrualOptionBase complexType),
pikSpread (defined in FixedRateOptionBase complexType),
rate (defined in FixedRateOptionBase complexType)
Known Direct Subtypes (3):
FixedRateAccrual, FixedRateOption, LcOptionBase
Known Indirect Subtypes (2):
LcAccrual, LcOption
All Direct / Indirect Based Elements (6):
fixedRateAccrual,
fixedRateOption (defined in FacilityOptionsFeesAndRates.model group),
fixedRateOption (in fixedRateOptionChange),
lcAccrual,
lcOption (defined in FacilityOptionsFeesAndRates.model group),
lcOption (in lcOptionChange)
Known Usage Locations
Annotation
A structure which specifies a cash accrual option, as applied to a specific underlying base rate.
Type Definition Detail
Type Derivation Tree
AccrualOptionBase (extension)
  FixedRateOptionBase
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="FixedRateOptionBase">
<xsd:complexContent>
<xsd:extension base="AccrualOptionBase">
<xsd:sequence>
<xsd:element name="rate" type="xsd:decimal"/>
<xsd:element default="xsd:decimal" minOccurs="0" name="pikSpread"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/5)
pikSpread
Type:
xsd:anyType, any content
Simple Content
Default:
"xsd:decimal"
XML Source (see within schema source)
<xsd:element default="xsd:decimal" minOccurs="0" name="pikSpread"/>
rate
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element name="rate" type="xsd:decimal"/>
