complexType "FloatingRateOptionBase"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 7 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 2 locations

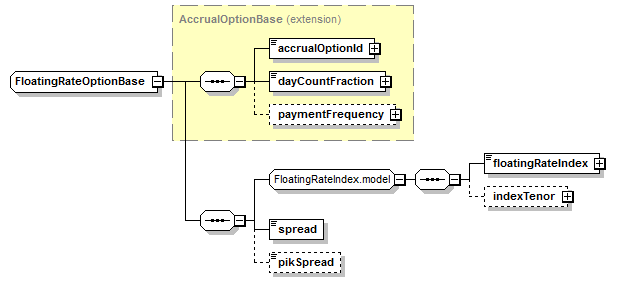

Content Model Diagram

XML Representation Summary

<...>

Content:

accrualOptionId, dayCountFraction, paymentFrequency?, floatingRateIndex, indexTenor?, spread, pikSpread?

</...>

Content Model Elements (7):

accrualOptionId,

dayCountFraction (defined in AccrualOptionBase complexType),

floatingRateIndex (defined in FloatingRateIndex.model group),

indexTenor (defined in FloatingRateIndex.model group),

paymentFrequency (defined in AccrualOptionBase complexType),

pikSpread (defined in FloatingRateOptionBase complexType),

spread (defined in FloatingRateOptionBase complexType)

Known Direct Subtypes (2):

FloatingRateAccrual, FloatingRateOption

All Direct / Indirect Based Elements (3):

floatingRateAccrual,

floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),

floatingRateOption (in floatingRateOptionChange)

Known Usage Locations

In derivations of other global types (2):

FloatingRateAccrual (as extension base),

FloatingRateOption (as extension base)

Annotation

A structure which specifies a cash accrual option, as applied to a specific underlying base rate.

Type Definition Detail

Type Derivation Tree

AccrualOptionBase (extension)

FloatingRateOptionBase

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType abstract="true" name="FloatingRateOptionBase">

<xsd:complexContent>

<xsd:extension base="AccrualOptionBase">

<xsd:sequence>

<xsd:group ref="FloatingRateIndex.model"/>

<xsd:element name="spread" type="xsd:decimal"/>

<xsd:element minOccurs="0" name="pikSpread" type="xsd:decimal"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/7)

pikSpread

Type:

xsd:decimal, predefined, simple content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="pikSpread" type="xsd:decimal"/>

spread

Type:

xsd:decimal, predefined, simple content

XML Source (see within schema source)

<xsd:element name="spread" type="xsd:decimal"/>
