element <letterOfCredit> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LetterOfCredit
Content:
complex, 7 elements
Defined:
locally within LcIssuance complexType in fpml-loan-5-8.xsd; see XML source

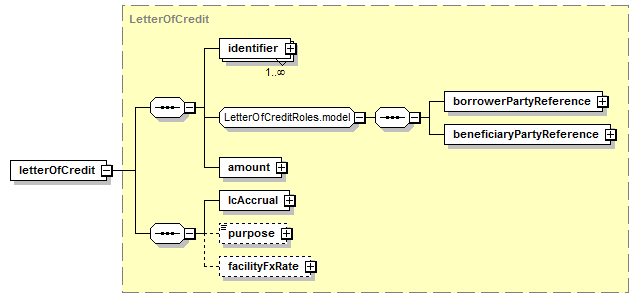

Content Model Diagram
XML Representation Summary
<letterOfCredit>

Content:
</letterOfCredit>
Content model elements (7):
amount (defined in LetterOfCreditSummary complexType),
beneficiaryPartyReference (defined in LetterOfCreditRoles.model group),
borrowerPartyReference (defined in LetterOfCreditRoles.model group),
facilityFxRate (defined in LetterOfCredit complexType),
identifier (defined in LetterOfCreditSummary complexType),
lcAccrual,
purpose
Included in content model of elements (1):
lcIssuance
Annotation
A full definition of the letter of credit being issued.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="letterOfCredit" type="LetterOfCredit"/>
