complexType "LetterOfCredit"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 7 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 3 locations

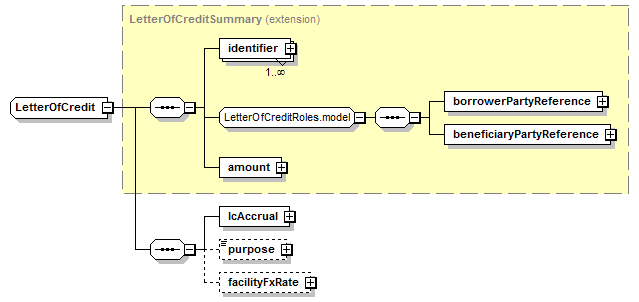

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (7):
amount (defined in LetterOfCreditSummary complexType),
beneficiaryPartyReference (defined in LetterOfCreditRoles.model group),
borrowerPartyReference (defined in LetterOfCreditRoles.model group),
facilityFxRate (defined in LetterOfCredit complexType),
identifier (defined in LetterOfCreditSummary complexType),
lcAccrual,
purpose
All Direct / Indirect Based Elements (3):
Known Usage Locations
Annotation
A definition of an unfunded borrowing instrument known as a Letter of Credit.
Type Definition Detail
Type Derivation Tree
LetterOfCreditSummary (extension)
  LetterOfCredit
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="LetterOfCredit">
<xsd:complexContent>
<xsd:extension base="LetterOfCreditSummary">
<xsd:sequence>
<xsd:element name="lcAccrual" type="LcAccrual"/>
<xsd:element minOccurs="0" name="purpose" type="LcPurpose"/>
<xsd:element minOccurs="0" name="facilityFxRate" type="FxTerms"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/7)
facilityFxRate
Type:
FxTerms, complex content
Defines exchange rate between the letter of credit and facility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="facilityFxRate" type="FxTerms"/>
lcAccrual
Type:
LcAccrual, complex content
The letter of credit fee rate details.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lcAccrual" type="LcAccrual"/>
purpose
Type:
LcPurpose, simple content
Defines the purpose of a letter of credit.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="purpose" type="LcPurpose"/>
