complexType "LcIssuanceFeePayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

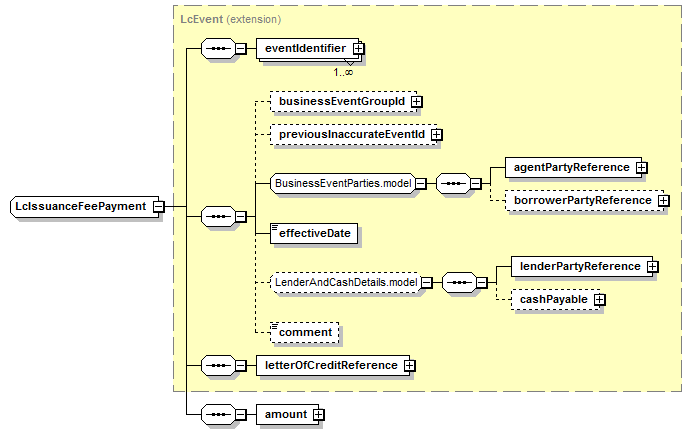

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (11):
agentPartyReference (defined in BusinessEventParties.model group),
amount (in lcIssuanceFeePayment),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
lenderPartyReference,
letterOfCreditReference (defined in LcEvent complexType),
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
lcIssuanceFeePayment
Known Usage Locations
Annotation
A flat fee paid to the Issuing Bank for a Letter of Credit.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      LcEvent (extension)
          LcIssuanceFeePayment
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="LcIssuanceFeePayment">
<xsd:complexContent>
<xsd:extension base="LcEvent">
<xsd:sequence>
<xsd:element name="amount" type="MoneyWithParticipantShare"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
amount
Type:
MoneyWithParticipantShare, complex content
XML Source (see within schema source)
<xsd:element name="amount" type="MoneyWithParticipantShare"/>
