complexType "LcTermination"
Namespace:
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

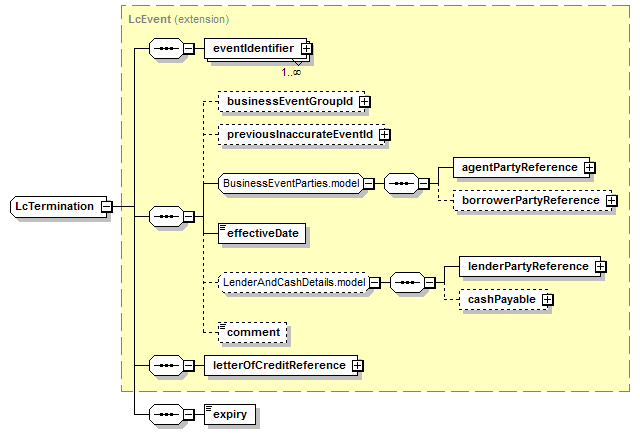

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (11):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
expiry (in lcTermination),
lenderPartyReference,
letterOfCreditReference (defined in LcEvent complexType),
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
lcTermination
Known Usage Locations
Annotation
An event capturing either expiry or cancellation of a Letter of Credit
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      LcEvent (extension)
          LcTermination
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="LcTermination">
<xsd:complexContent>
<xsd:extension base="LcEvent">
<xsd:sequence>
<xsd:element name="expiry" type="xsd:boolean"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
expiry
Type:
xsd:boolean, predefined, simple content
Determines whether this event was created due to a natural expiration of the letter of credit or an unscheduled cancellation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expiry" type="xsd:boolean"/>
