complexType "OutstandingsPosition"
Namespace:
Content:
complex, 5 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 5 elements
Used:

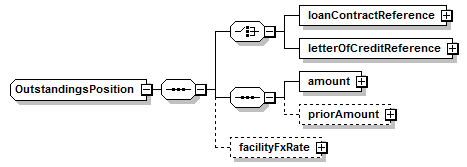

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
All Direct / Indirect Based Elements (1):
outstandingsPosition
Known Usage Locations
Annotation
Represents outstanding loan contracts or outstanding letter of credit position. Both the global and lender position (current and prior) levels can be represented.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="OutstandingsPosition">
<xsd:sequence>
<xsd:choice>
<xsd:element name="loanContractReference" type="LoanContractReference"/>
</xsd:choice>
<xsd:sequence>
<xsd:element name="amount" type="MoneyWithParticipantShare"/>
<xsd:element minOccurs="0" name="priorAmount" type="MoneyWithParticipantShare"/>
</xsd:sequence>
<xsd:element minOccurs="0" name="facilityFxRate" type="FxTerms"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 5/5)
amount
Type:
MoneyWithParticipantShare, complex content
The global and share amounts against the associated instrument. This is after any referenced business events have taken place.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="amount" type="MoneyWithParticipantShare"/>

facilityFxRate
Type:
FxTerms, complex content
Defines a single (current) FX rate used to calculate utilization in the facility currency. Used in the case where the loan contract currency is different to the facility currency.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="facilityFxRate" type="FxTerms"/>

letterOfCreditReference
Type:
XML Source (see within schema source)

loanContractReference
Type:
LoanContractReference, empty content
XML Source (see within schema source)
<xsd:element name="loanContractReference" type="LoanContractReference"/>

priorAmount
Type:
MoneyWithParticipantShare, complex content
The global and share amounts against the associated instrument. This is prior to any referenced business events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="priorAmount" type="MoneyWithParticipantShare"/>
