complexType "PrimaryLenderConsentRule"
Namespace:
Content:
complex, 3 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

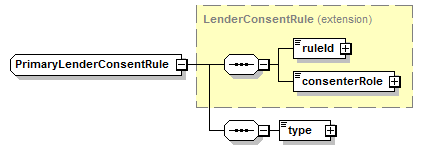

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
All Direct / Indirect Based Elements (1):
primaryLenderConsentRule
Known Usage Locations
Annotation
Used to model primary syndication consent rules for new lenders.
Type Definition Detail
Type Derivation Tree
LenderConsentRule (extension)
  PrimaryLenderConsentRule
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="PrimaryLenderConsentRule">
<xsd:complexContent>
<xsd:extension base="LenderConsentRule">
<xsd:sequence>
<xsd:element name="type" type="PrimaryConsentType"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
type
Type:
PrimaryConsentType, simple content
The type of consent required on primary transactions for this facility.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="type" type="PrimaryConsentType"/>
