complexType "ValuationDocument"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 9 elements
Defined:
globally in fpml-main-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

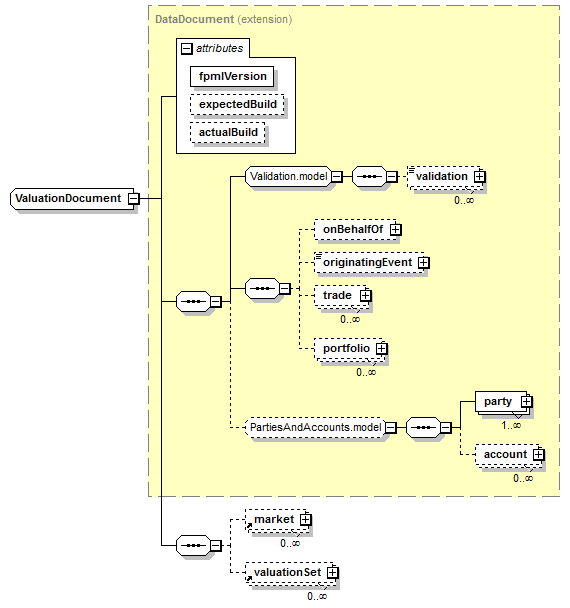

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (9):
onBehalfOf (defined in DataDocument complexType),
originatingEvent (defined in DataDocument complexType),
party (defined in PartiesAndAccounts.model group),
portfolio (defined in DataDocument complexType),
trade (defined in DataDocument complexType),
All Direct / Indirect Based Elements (1):
valuationDocument
Known Usage Locations
Annotation
A type defining a content model that includes valuation (pricing and risk) data without expressing any processing intention.
Type Definition Detail
Type Derivation Tree
Document (extension)
  DataDocument (extension)
      ValuationDocument
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="ValuationDocument">
<xsd:complexContent>
<xsd:extension base="DataDocument">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="market"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="valuationSet"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/9)
market
Type:
Market, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="market"/>
valuationSet
Type:
ValuationSet, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="valuationSet"/>
