complexType "FxCurve"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-mktenv-5-8.xsd; see XML source
Used:
at 1 location

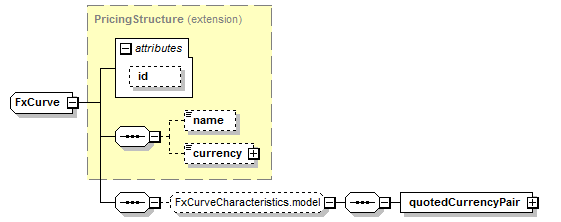

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (3):
currency (defined in PricingStructure complexType),
name (defined in PricingStructure complexType),
All Direct / Indirect Based Elements (1):
fxCurve
Known Usage Locations
Annotation
An fx curve object., which includes pricing inputs and term structures for fx forwards.
Type Definition Detail
Type Derivation Tree
PricingStructure (extension)
  FxCurve
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="FxCurve">
<xsd:complexContent>
<xsd:extension base="PricingStructure">
<xsd:sequence>
<xsd:group minOccurs="0" ref="FxCurveCharacteristics.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
