complexType "PortfolioConstituentReference"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 2 elements
Defined:
globally in fpml-msg-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

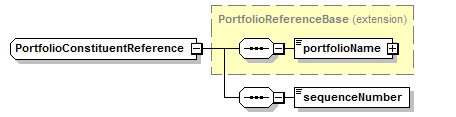

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (2):
portfolioName (defined in PortfolioReferenceBase complexType),
sequenceNumber (in portfolioReference in requestRetransmission)
All Direct / Indirect Based Elements (1):
portfolioReference (in requestRetransmission)
Known Usage Locations
Annotation
A structure used to group together individual messages that can be acted on at a group level.
Type Definition Detail
Type Derivation Tree
PortfolioReferenceBase (extension)
  PortfolioConstituentReference
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="PortfolioConstituentReference">
<xsd:complexContent>
<xsd:extension base="PortfolioReferenceBase">
<xsd:sequence>
<xsd:element name="sequenceNumber" type="xsd:positiveInteger"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/2)
sequenceNumber
Type:
xsd:positiveInteger, predefined, simple content
A numeric, sequentially ascending (i.e. gapless) value (starting at 1) that can be used to identify and distinguish the individual constituents of a portfolio request. A recipient should ensure that all sequence numbers from 1 to the final sequence number (where submissionsComplete is true) have arrived before completing the portfolio request.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="sequenceNumber" type="xsd:positiveInteger"/>
