complexType "ServiceAdvisory"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-msg-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

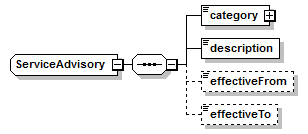

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (4):
All Direct / Indirect Based Elements (1):
advisory
Known Usage Locations
Annotation
A type defining the content model for a human-readable notification to the users of a service.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="ServiceAdvisory">
<xsd:sequence>
<xsd:element name="category" type="ServiceAdvisoryCategory"/>
<xsd:element name="description" type="String"/>
<xsd:element minOccurs="0" name="effectiveFrom" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="effectiveTo" type="xsd:dateTime"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
category
Type:
ServiceAdvisoryCategory, simple content
The category or type of the notification message, e.g. availability, product coverage, rules, etc.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="category" type="ServiceAdvisoryCategory"/>
description
Type:
String, simple content
A human-readable notification.
Simple Content
xsd:string
maxLength:
255
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="description" type="String"/>
effectiveFrom
Type:
xsd:dateTime, predefined, simple content
The time at which the information supplied by the advisory becomes effective. For example, if the advisory advises of a newly planned service outage, it will be the time the service outage begins.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="effectiveFrom" type="xsd:dateTime"/>
effectiveTo
Type:
xsd:dateTime, predefined, simple content
The time at which the information supplied by the advisory becomes no longer effective. For example, if the advisory advises of a newly planned service outage, it will be the time the service outage ends.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="effectiveTo" type="xsd:dateTime"/>
