complexType "FailureToPay"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-option-shared-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

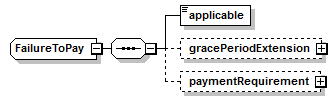

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
applicable (in failureToPay defined in CreditEvents complexType),
gracePeriodExtension,
paymentRequirement
All Direct / Indirect Based Elements (1):
failureToPay (defined in CreditEvents complexType)
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FailureToPay">
<xsd:sequence>
<xsd:element name="applicable" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="gracePeriodExtension" type="GracePeriodExtension"/>
<xsd:element minOccurs="0" name="paymentRequirement" type="Money"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
applicable
Type:
xsd:boolean, predefined, simple content
Indicates whether the failure to pay provision is applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="applicable" type="xsd:boolean"/>
gracePeriodExtension
Type:
GracePeriodExtension, complex content
If this element is specified, indicates whether or not a grace period extension is applicable. ISDA 2003 Term: Grace Period Extension Applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="gracePeriodExtension" type="GracePeriodExtension"/>
paymentRequirement
Type:
Money, complex content
Specifies a threshold for the failure to pay credit event. Market standard is USD 1,000,000 (JPY 100,000,000 for Japanese Yen trades) or its equivalent in the relevant obligation currency. This is applied on an aggregate basis across all Obligations of the Reference Entity. Intended to prevent technical/operational errors from triggering credit events. ISDA 2003 Term: Payment Requirement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="paymentRequirement" type="Money"/>
