complexType "OptionStrike"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-option-shared-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

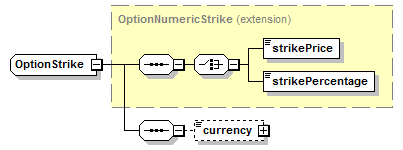

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
currency (defined in OptionStrike complexType),
strikePercentage (defined in OptionNumericStrike complexType),
strikePrice (defined in OptionNumericStrike complexType)
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
A type for defining the strike price for an equity option. The strike price is either: (i) in respect of an index option transaction, the level of the relevant index specified or otherwise determined in the transaction; or (ii) in respect of a share option transaction, the price per share specified or otherwise determined in the transaction. This can be expressed either as a percentage of notional amount or as an absolute value.
Type Definition Detail
Type Derivation Tree
OptionNumericStrike (extension)
  OptionStrike
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="OptionStrike">
<xsd:complexContent>
<xsd:extension base="OptionNumericStrike">
<xsd:sequence>
<xsd:element minOccurs="0" name="currency" type="Currency"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
currency
Type:
Currency, simple content
The currency in which an amount is denominated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="currency" type="Currency"/>
