complexType "VersionedRepoLegId"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-repo-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

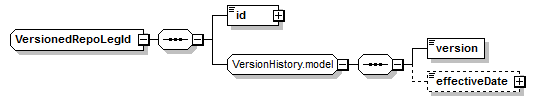

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
version (defined in VersionHistory.model group)
All Direct / Indirect Based Elements (1):
versionedRepoLegId
Known Usage Locations
Annotation
Repo Leg Id with version control elements.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="VersionedRepoLegId">
<xsd:sequence>
<xsd:element name="id" type="RepoLegId"/>
<xsd:group ref="VersionHistory.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
id
Type:
RepoLegId, simple content
??? A brief description should be provided
Simple Content
xsd:normalizedString
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="id" type="RepoLegId"/>
