complexType "EquitySwapTransactionSupplement"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 24 elements
Defined:	globally in fpml-return-swaps-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

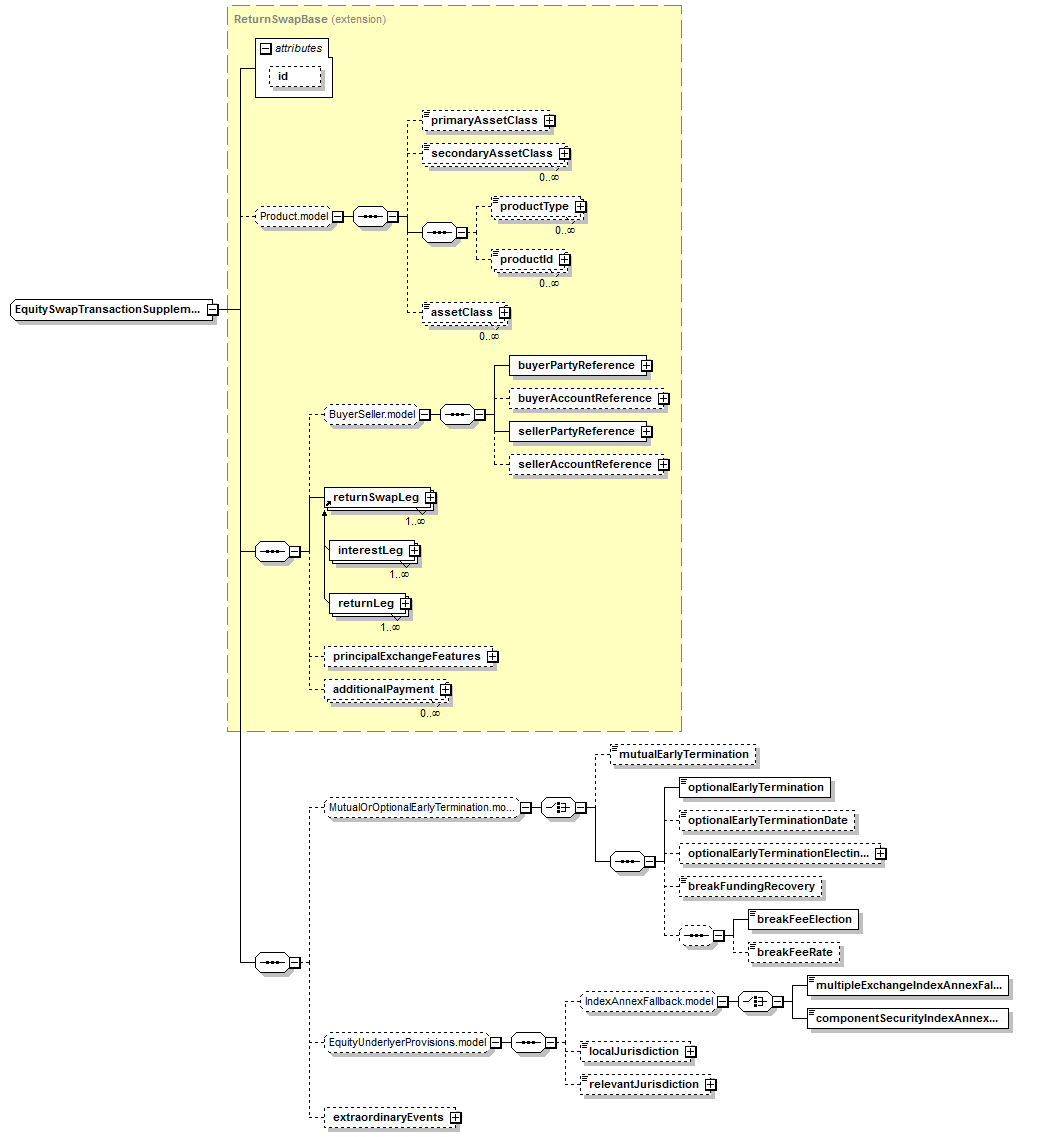

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, (buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?)?, returnSwapLeg+, principalExchangeFeatures?, additionalPayment*, (mutualEarlyTermination? | (optionalEarlyTermination, optionalEarlyTerminationDate?, optionalEarlyTerminationElectingPartyReference?, breakFundingRecovery?, (breakFeeElection, breakFeeRate?)?))?, ((multipleExchangeIndexAnnexFallback | componentSecurityIndexAnnexFallback)?, localJurisdiction?, relevantJurisdiction?)?, extraordinaryEvents?

</...>

Content Model Elements (24):

additionalPayment (defined in ReturnSwapBase complexType),

assetClass,

breakFeeElection,

breakFeeRate,

breakFundingRecovery,

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

componentSecurityIndexAnnexFallback,

extraordinaryEvents (in equitySwapTransactionSupplement),

localJurisdiction (defined in EquityUnderlyerProvisions.model group),

multipleExchangeIndexAnnexFallback,

mutualEarlyTermination,

optionalEarlyTermination (in equitySwapTransactionSupplement),

optionalEarlyTerminationDate,

optionalEarlyTerminationElectingPartyReference,

primaryAssetClass,

principalExchangeFeatures,

productId (defined in Product.model group),

productType (defined in Product.model group),

relevantJurisdiction,

returnSwapLeg,

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group)

All Direct / Indirect Based Elements (1):

equitySwapTransactionSupplement

Known Usage Locations

As direct type of elements (1):

equitySwapTransactionSupplement

Annotation

A type for defining Equity Swap Transaction Supplement

Type Definition Detail

Type Derivation Tree

Product (extension)

ReturnSwapBase (extension)

EquitySwapTransactionSupplement

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="EquitySwapTransactionSupplement">

<xsd:complexContent>

<xsd:extension base="ReturnSwapBase">

<xsd:sequence>

<xsd:group minOccurs="0" ref="MutualOrOptionalEarlyTermination.model"/>

<xsd:group minOccurs="0" ref="EquityUnderlyerProvisions.model"/>

<xsd:element minOccurs="0" name="extraordinaryEvents" type="ExtraordinaryEvents"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/24)

extraordinaryEvents

Type:

ExtraordinaryEvents, complex content

Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="extraordinaryEvents" type="ExtraordinaryEvents"/>
