complexType "AdjustedRelativeDateOffset"
Namespace:
Content:
complex, 1 attribute, 9 elements
Defined:
Includes:
definition of 1 element
Used:

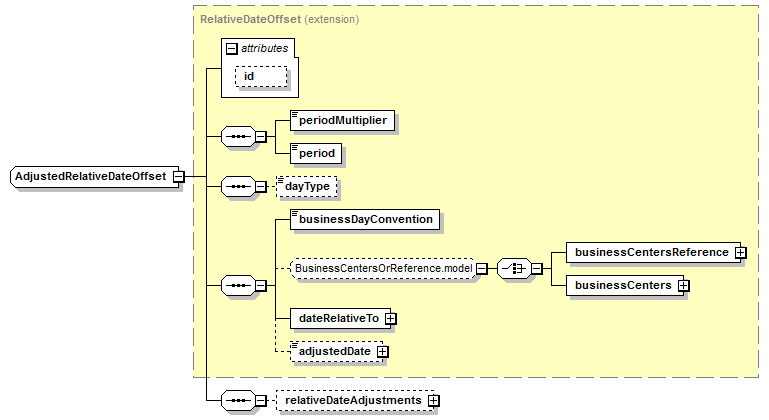

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (9):
adjustedDate (defined in RelativeDateOffset complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
businessDayConvention (defined in RelativeDateOffset complexType),
dateRelativeTo (defined in RelativeDateOffset complexType),
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType),
relativeDateAdjustments
All Direct / Indirect Based Elements (1):
relativeEffectiveDate
Known Usage Locations
Annotation
A type defining a date (referred to as the derived date) as a relative offset from another date (referred to as the anchor date) plus optional date adjustments.
Type Definition Detail
Type Derivation Tree
Period (extension)
  Offset (extension)
      RelativeDateOffset (extension)
          AdjustedRelativeDateOffset
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AdjustedRelativeDateOffset">
<xsd:complexContent>
<xsd:extension base="RelativeDateOffset">
<xsd:sequence>
<xsd:element minOccurs="0" name="relativeDateAdjustments" type="BusinessDayAdjustments"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/9)
relativeDateAdjustments
Type:
BusinessDayAdjustments, complex content
The business day convention and financial business centers used for adjusting the relative date if it would otherwise fall on a day that is not a business date in the specified business centers.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="relativeDateAdjustments" type="BusinessDayAdjustments"/>
