complexType "AmountSchedule"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

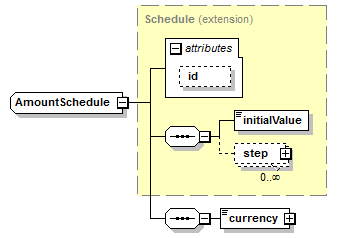

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (3):
currency (defined in AmountSchedule complexType),
initialValue (defined in Schedule complexType),
step (defined in Schedule complexType)
All Direct / Indirect Based Elements (2):
feeAmountSchedule, knownAmountSchedule
Known Usage Locations
Annotation
A type defining a currency amount or a currency amount schedule.
Type Definition Detail
Type Derivation Tree
Schedule (extension)
  AmountSchedule
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AmountSchedule">
<xsd:complexContent>
<xsd:extension base="Schedule">
<xsd:sequence>
<xsd:element name="currency" type="Currency"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
currency
Type:
Currency, simple content
The currency in which an amount is denominated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="currency" type="Currency"/>
