complexType "Beneficiary"
Namespace:
Content:
complex, 4 elements
Defined:
Includes:
definition of 1 element
Used:

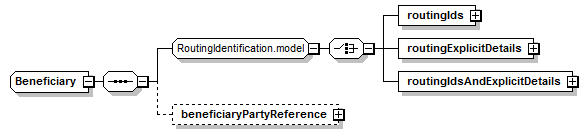

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (4):
beneficiaryPartyReference (defined in Beneficiary complexType),
routingExplicitDetails,
routingIds (defined in RoutingIdentification.model group),
routingIdsAndExplicitDetails
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
A type defining the beneficiary of the funds.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="Beneficiary">
<xsd:sequence>
<xsd:group ref="RoutingIdentification.model"/>
<xsd:element minOccurs="0" name="beneficiaryPartyReference" type="PartyReference"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
beneficiaryPartyReference
Type:
PartyReference, empty content
Link to the party acting as beneficiary. This element can only appear within the beneficiary container element.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="beneficiaryPartyReference" type="PartyReference"/>
